304 Stainless Steel Cap Screws Hexagon Socket Head M6 Standard Fastener

China 304 Stainless Steel Cap Screws Hexagon Socket Head M6 Standard Fastener supplier
304 Stainless Steel Cap Screws Hexagon Socket Head M6 Standard Fastener supplier 304 Stainless Steel Cap Screws Hexagon Socket Head M6 Standard Fastener supplier 304 Stainless Steel Cap Screws Hexagon Socket Head M6 Standard Fastener supplier 304 Stainless Steel Cap Screws Hexagon Socket Head M6 Standard Fastener supplier 304 Stainless Steel Cap Screws Hexagon Socket Head M6 Standard Fastener supplier

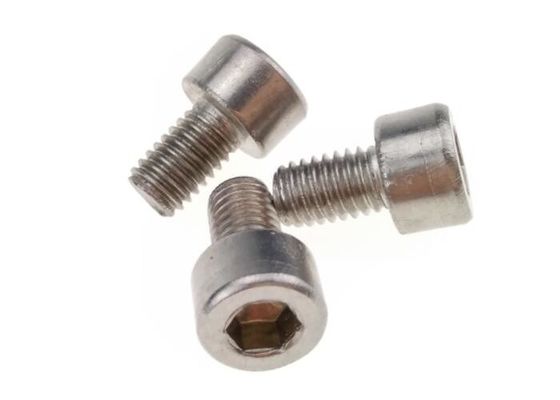

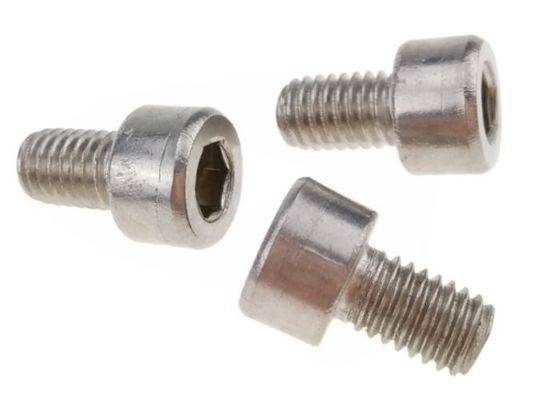

Large Image :  304 Stainless Steel Cap Screws Hexagon Socket Head M6 Standard Fastener

Product Details:

Place of Origin: China
Brand Name: VDL
Certification: ISO
Model Number: SHC0520

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 10000 pcs per carton in bulk wiht dimension 20 X 22 X 25 cm , 500 cartons to a 20 ft container
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500 , 000 pcs per month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Hardness: HRC60
Finish: Polishing Thread Diameter: M6
Thread Length: 20 Mm Head: Cup
Point: Flat Pitch: 0.8



304 Stainless Steel Cap Screws  Hexagon Socket Head Cap Screws M6 Standard Fastener



Stainless steel cup head screws with hexagonal socket , metric full threads from M2 to M36 based on DIN 912 standard , chamfered flat point . the diameter of head is bigger than the threaded diameter so that screws secure and support workpieces ; Normally , the head section is sunken into workpieces after installed . Use a hex wench that is suitable specification to operate hexagonal socket screws .





Material



Hexagonal socket cup head screws are made from stainless steel 304 for high havey load application in industry .





Specification



Hexagonal socket cup head screws are made according to standard DIN 912 , and specification from M2 to M36 for normal applications , we are capable of customization for special applications .



304 Stainless Steel Cap Screws Hexagon Socket Head M6 Standard Fastener



d D H S P L
2 3.8 2 1.5 0.4 5-8
2.5 4.5 2.5 2 0.4 5-8
3 5.5 3 2.5 0.5 5-10
4 7 4 3 0.7 8-15
5 8.5 5 4 0.8 10-30
6 10 6 5 1.0 15-45
8 13 8 6 1.25 20-80
10 16 10 8 1.5 25-100
12 18 12 10 1.75 30-120
14 21 14 12 2.0 50-150
16 24 16 14 2.0 50-200
18 27 18 14 2.5 60-250
20 30 20 17 2.5 80-400
22 33 22 17 2.5 100-450
24 36 24 19 3.0 100-500
30 45 30 22 3.5 100-600
33 50 33 24 3.5 110-600
36 54 36 27 4.0 110-600



                                                             DIN 912 standard from M2 to M36



Tolerance



Normal tolerances are +/-0.1 mm , and refer to ISO 2768 for unspecified tolerances .





Finish



Polishing





Features for shoulder screws





1 , High tensile strenth



2 , No Magnet



3 , Corrosion resistance



4 , Long service



5 , Easy to be operated





Property Class



Normal property class for hexagonal socket cup  head screws are from 4.8 to 12.9 based on carbon steel , stainless steel hexagonal socket cujp head screws are equal to 8.8 to 12.9 grade for carbon steel .





Packing



Stainless steel hexagonal socket cap screws are packed in box with quantity from 50 to 500 pcs for different sizes .



d L PCS/Box
2 5-8 500
2.5 5-8 500
3 5-10 500
4 8-15 500
5 10-30 200
6 15-45 200
8 20-80 100
10 25-100 100
12 30-120 50
14 50-150 50
16 50-200 50
18 60-250 50
20 80-400 50
22 100-450 50
24 100-500 50
30 100-600 50
33 110-600 50
36 110-600 50
