Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Property Class: | 5052 |
|---|---|---|---|
| Hardness: | HV 110 | Finish: | NA |
| Diameter: | 3 | Length: | 10 |
| Head: | Flat | Point: | Flat |
| High Light: | rivets and fasteners,small rivets |
||

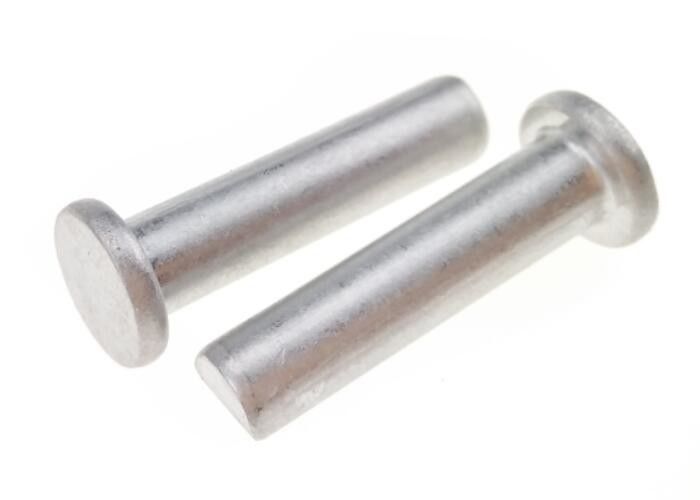

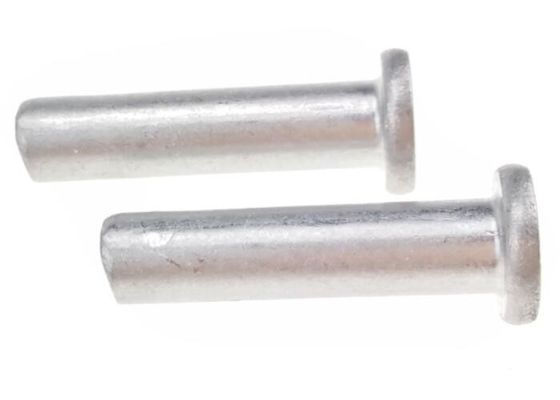

3X10 mm Flat Head Solid Aluminum Rivets Grade 5052 for Industry
Aluminum Solid rivet has a flat head and a flat point that goes to the surface material or sunken into it when riveting .connection . the rivet body will be deformed to rivet material under pressure .
Solid rivets are non-detachable style and can not be recycled .
Description : Solid flat rivet
Diameter ；3 mm
Length : 10 mm
Head diameter : 6 mm
Head height : 1.5 mm
Material : Auminum
We provide other sizes for solid rivets from 2 to 10 mm and accept customied sizes that over 10 mm .
| Spec | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 8 | 10 | |
| d | max | 2.06 | 2.56 | 3.06 | 3.58 | 4.08 | 5.08 | 6.08 | 8.1 | 10.1 |
| min | 1.94 | 2.44 | 2.94 | 3.42 | 3.92 | 4.92 | 5.92 | 7.9 | 9.9 | |
| dk | max | 4.24 | 5.24 | 6.24 | 7.29 | 8.29 | 10.29 | 12.35 | 16.35 | 20.42 |
| min | 3.76 | 4.76 | 5.76 | 6.71 | 7.71 | 9.71 | 11.65 | 15.65 | 19.58 | |
| k | max | 1.2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.6 | 3 | 3.44 |
| min | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.8 | 2.2 | 2.6 | 2.96 | |
| r max | 0.1 | 0.1 | 0.1 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | |
| l | 4-8 | 5-10 | 6-14 | 6-18 | 8-12 | 10-26 | 12-30 | 16-30 | 20-30 | |
Solid rivets are manufactured in different materials
| Material | Code |
| Stainless steel | SUS 201 , SUS303 , SUS 304 ,SUS 316 , SUS 416 ,SUS 430 and SUS 420 |
| Carbon steel | 1008 , 1010 , 1018 , 1022 , 1035 , 1045 , SCM 435 and 40CRO |
| Aluminum | 2024 , 6061 and 7075 |
| Brass | CuZn35 , CuZn37 , CuZn40 , CuZn37Pb1 and CuZn39Pb1 |
Finish
| Finish | Description |
| Zinc | Various color can be choosed and perfect on anti-corrosion |
| Nickel | Make the surface of the screws more bright and hardened and the performance of screws will be improved |
| Polish | Improving the brightness of surface but is inferior is not as zinc in anti-corrosion |
| Tin | Perfect to be anti-rust , and widely used to components |
| Brass | It is usually used with Nickel for more good anti-corrrosion. |
| Paint | Its powder paint with colors to prevent surface from rust. |
Applications
Normally , solid rivets are used to official products ,lock ,Car and suitcase etc .
Competitive Advantages
Top quality with cheap price
Strict dimensions control and high precision
Small MOQ is accepted
Quick delivery
Perfect sales-after service
In addition to , we provide tubular rivets ,stainless steel rivets ,push rivets , rivet nuts , pop rivets and brass rivets with different sizes and are made of or from various metal materials and plastics for much applications in industry .
