Material: | Plastic | Property Class: | PA 66 |
---|---|---|---|
Color: | White | Fire Resistance: | UL94V-2 |
Specifiction: | 6 To 18 Mm | Style: | RS |
Hardness: | HB 12 | Environment Friendly: | RoHS |
Highlight: | pc board standoffs,pcb spacers standoffs,6mm pcb spacer support |

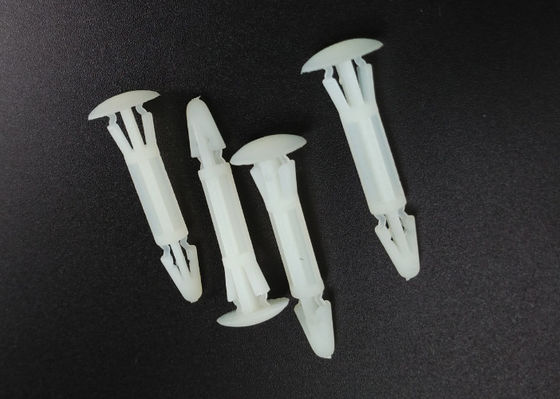

RS0618 Small PCB Standoff Hardware 6mm White Plastic PCB Spacer Support
RS series Spacer supports are used to fix PC board and separate each PC boards to
keep distance for easy connecting .
Material
Plastic nylon PA66
Color
White color
Typical Features
Complete insulation
Perfect corrosion
Light weight
Not easy to be deformed
Fire resistance
Advantages
Fixing PC board without any tool
Easy to be installed and replaced
Specification
Model No. | PCB thickness | Hole dia. | L | |
RS0403 | 0.5-1.8 | 4.8 | 3 | 3.5 |
RS0405 | 0.5 | 4.8 | 5 | 5.5 |
RS0406 | 0.5 | 4.8 | 6 | 6.5 |
RS0408 | 0.5 | 4.8 | 8 | 8.5 |
RS0410 | 0.5 | 4.8 | 10 | 10.2 |
RS0412 | 0.5 | 4.8 | 12 | 12.5 |
RS0414 | 0.5 | 4.8 | 14 | 14.5 |
RS0416 | 0.5 | 4.8 | 16 | 16.5 |
RS0418 | 0.5 | 4.8 | 18 | 18.5 |
Applications
Plastic spacer support is mainly used for fixing PCB
Installation
1 , Drill a hole with 5.5 mm in PCS base
2 , Put spacer support into hole from bigger hole to smaller hole .
3 , Fix PC board
Characteristics
▲ High Tensile Strength
▲ Low Temperature Resistance
▲ Impact Resistance
▲ Perfect Isolation
▲ Various Color Choices
▲ Perfect Heat Resisting Property
Packing
Model No. | Hole dia. | L | PCS/Bag | |
RS0403 | 4.8 | 3 | 3.5 | 1000 |
RS0405 | 4.8 | 5 | 5.5 | 1000 |
RS0406 | 4.8 | 6 | 6.5 | 1000 |
RS0408 | 4.8 | 8 | 8.5 | 1000 |
RS0410 | 4.8 | 10 | 10.2 | 1000 |
RS0412 | 4.8 | 12 | 12.5 | 1000 |
RS0414 | 4.8 | 14 | 14.5 | 1000 |
RS0416 | 4.8 | 16 | 16.5 | 1000 |
RS0418 | 4.8 | 18 | 18.5 | 1000 |
