Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Property Class: | 6063 |
|---|---|---|---|
| Hardness: | HB 13 | Finish: | Oxidation |
| Color: | Silver | Diameter: | 15 |
| Height: | 20 | Precision: | IT7 |
| High Light: | metal machined components,metal machined parts,aluminum end cap turned part |
||

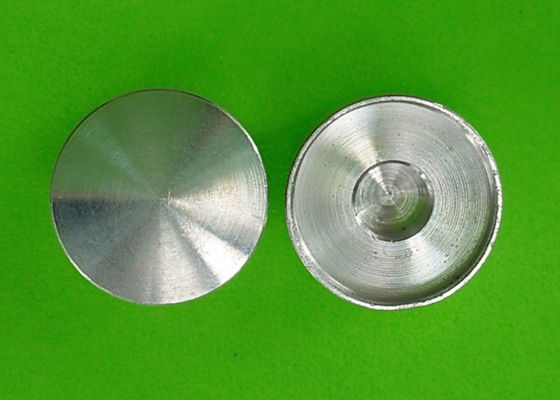

Silver Oxide Aluminum End Caps for Assembled Connector 15mm x 20mm
Aluminum end cap turned part is designed with inside threads for connector , partial threads inside cap is assembled on end of connector to prevent fittings in connector from slipping out , there is a plain section length in cap .
Material for end cap turned part
This end cap turned part is used to assembled connector with light loading , tensile strength is not as heavy as steels , generally , we designed material is aluminum
| Material | Aluminum |
| Class property | 6061 |
| Tensile strength σb (MPa) | 200 |
| Yield Strength σs (MPa) | 160 |
| Elongation δ5 (%) | 9.5 |
| Density g/cm3) | 2.7 |
Customized dimensions for end cap turned part
| Height | 15 |
| Diameter | 20 |
| Thickness wall | 3 |
| Thread | M18 |
| Chamfer | 45° X 0.5 |
| Tolerance | +/-0.05 |
Unit :mm
Finish for end cap turned part
Oxidation with silver color and thickness of finish is 2 um .
Other oxidation color asRed ,blue , green , black and white etc , and the thickness of finish is up to 40 um for different requests .
Except oxidation finish , there are more other finish that can be used to more applications in industry .
| Finish | Colors | Thickness | Charicteristics |
| Zinc | Blue ,White ,Black ,Yellow | 5-107μm | Bright and smooth surface ,corrosion resistance |
| Nickel | Silver | 1～3μm | Wear resistance ,bright appearance , anti-corrosion |
| Polishing | Silver | 0.01mm ( reference ) | Improving brightness of surface |
| Tin | Silver | 0.13～1.27μm | Good ductility ,corrosion resistance ,lower melting point ,eco-friendly ,brightness |
| Brass | Copper | 5gm～8gm | Good dispersibility ,Bright appearance |
| Chrome | Silver white | 0．25～0．5μm |
Harden surface ,Bright surface ,Heat resistance ,Wear resistance Corrosion resistance and eco-friendly
|
Features for end cap machined part
Corrosion resistant
No scratch and burrs
Fine roughness
Strict tolerances
Good material
Simple design
Wide applicability
Other turned parts we manufactured
Aluminum pin turned part
Stainless steel shaft machined part
Carbon steel axis turning part
Brass customized machined part with complex designs
We have scores of sets of advanced machines with high precision , we can manufacture various turned parts with complex structures in materials ; Small quantity is available for us . we keep best service for you always , contact us now for any cooperation on turned parts .
