Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Property Class: | 304 |
|---|---|---|---|
| Hardness: | HRC52 | Finish: | Polishing |
| Color: | Silver | Length: | 50 |
| Width: | 20 | Height: | 10 |
| High Light: | metal stamped parts,metal stamping products,ss belt clip stamping parts |
||

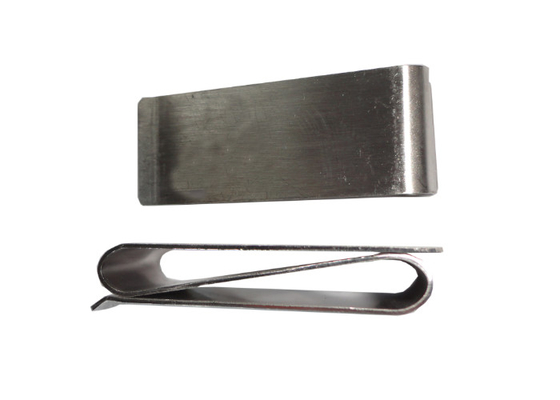

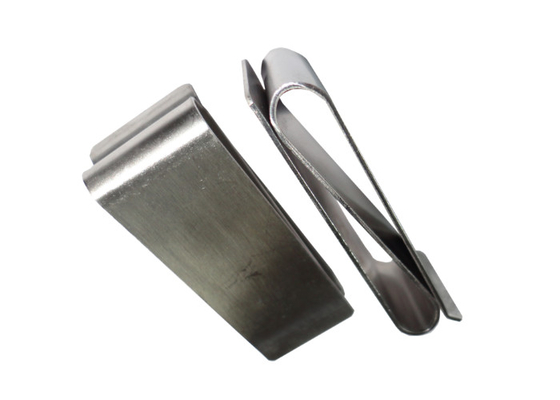

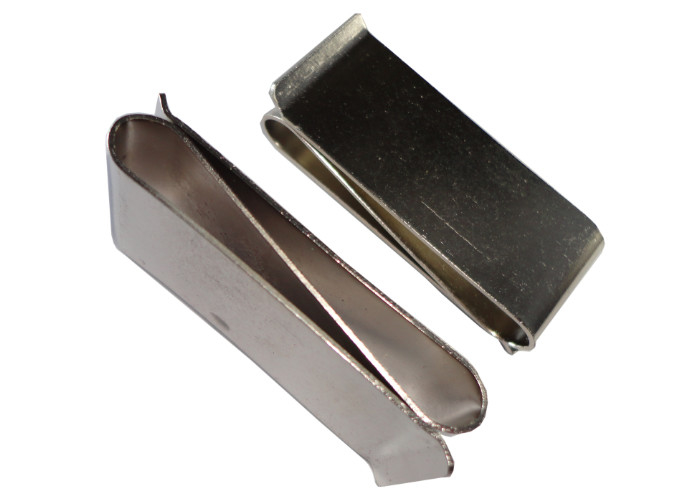

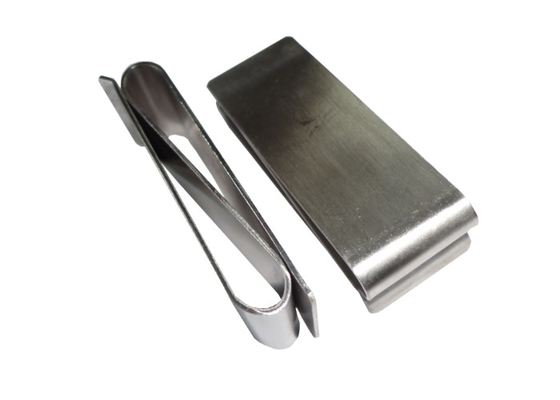

Double U Shaped Stainless Steel Belt Clip Stamping High Tensile Strength
Stainless Steel Belt Clip Stamping Parts with Double U Shape for Clasp Belts Purpose , basic length is 50 mm ( 2 inch about ) and width is 20 mm and the material thickness is 0.5 mm .
Belt clip stamping part are comprised of double U shape and both ends with angle bended . upper is a flat with tilt end that make claps belt more easy and lower is a flat without any perk .
Stainless steel double U belt clip stamping part can load heavy duty and clasp belts steadily
High tensile strength
Wear resistance
Corrosion resistant
Hard material
| Material | Stainless steel |
| Grade | 18-8 |
| Density | 7.98 |
| Surface finish | Polishing |
| Hardness HRC | 28 |
Customized specifications for double U belt clip stamping parts for your choices and welcome your other special sizes .
| Model | L | W | H | T |
| UBTC501905 | 50 | 19 | 8 | 0.5 |
| UBTC50191 | 50 | 19 | 8 | 1 |
| UBTC502005 | 50 | 20 | 8 | 0.5 |
| UBTC652005 | 65 | 20 | 8 | 0.5 |
| UBTC302005 | 30 | 15 | 8 | 0.5 |
| UBTC702510 | 70 | 25 | 8 | 1 |
Double U belt clip stamping parts are silk polished surface and with bright fine roughness
| Finish | Polishing |
| Color | Grey |
| Thickness | 2 |
| Roughness | R4.0 |
| RoHS | Compliance |
Feature
Quite bright surface
Perfect flexibility
No burrs and scratch
Hard material
RoHS complied
Mechanical properties
| Tensile strength σb (MPa) | 535 |
| Yield Strength σs (MPa) | 210 |
| Elongation δ5 (%) | 50 |
| Reduction of area ψ (%) | 65 |
Chemical elements
| C | Si | Mn | S | P | N | Cr | Ni |
| 0.07 | 0.06 | 2 | 0.025 | 0.04 | 0.1 | 19 | 10.5 |
Manufacturing Tolerances
Belt clip stamping parts manufacturing precision with grade ST2 for standard stamping request , but we can make it to 0.05mm for small sizes .
Packing
Normally , we pack belt clip stamping parts with polybag or tissue paper and chipboard cartons , in order to keep bright appearance we pack one blet clip stamping part each bag or parcel .
Optional materials
Double U shape stamping parts are made of stainless steel , they are can be made of or from more other materials for your different purposes .
Carbon steel : 1018 , 1022 , 1035 , 1045 , SCM 435 and ST37
Stainless steel : SUS 201 , SUS 304 ,SUS 316 , SUS 416 ,SUS 430 and SUS 420 .
Spring Steel : 1065 , 1060 , 1065
Our advantages
◆ Quick delivery
◆ Cheap prices
◆ Quality ensured
◆ Big production capacity
◆ Small MOQ
We manufacture more belt clip stamping parts with customization , if you have any interesting in our products , please contact us now , we can provide professional suggestions and perfect after-sales service for you .
