Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Property Class: | 6063 |
|---|---|---|---|
| Hardness: | HB 15 | Finish: | Oxidation |
| Color: | Silver | Length: | 85 |
| Width: | 45 | Height: | 25 |
| High Light: | metal stamped parts,metal stamping products,aluminum socket box stamped part |
||

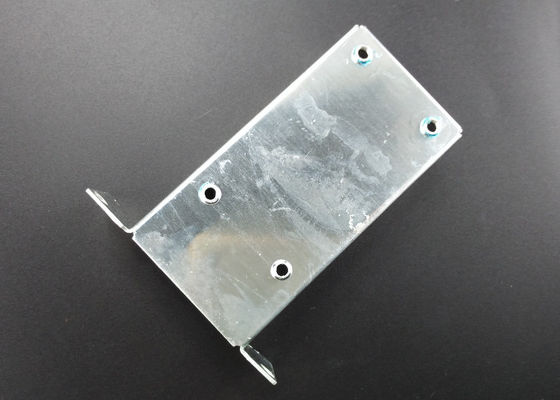

85 X 45 X 25 mm Silver Electrical Socket Box AL6063 Oxidation Stamping Aluminum Parts
Summary for socket box stamped parts
Socket box stamped part for electric component has a open one side for putting in object , and there are several holes on bottom and both long sides , no cover on the top of box .
Material
Socket box stamped parts are made of aluminum alloy 6063
Mechanical property
| Tensile strength σb (MPa) | 310 |
| Yield Strength σs (MPa) | 276 |
| Elongation δ 0.2 (%) | 12 |
| Reduction of area ψ (%) | 25 |
Chemical elements
| Cu | Zn | Mg | Fe | Mn | Cr | Si | Al |
| 0.3 | 0.25 | 1 | 0.7 | 0.15 | 0.1 | 0.5 | balance |
Thermal performance
| Fusing point(℃) | 650 |
| Specific heat capacity(0~100℃,KJ·kg-1K-1) | 896 |
| Heat conductivity(W·m-1·K-1) | 43 |
| Resistivity(20℃,10-6Ω·m) | 0.059 |
Specification
| Length mm | 85 |
| Width mm | 45 |
| Thickness | 1.0 |
| Height mm | 25 |
| Tolerance mm | +/-0.1 |
Tolerances
Tolerances are ±0.1 mm for normal sizes and other sizes are referred to standard ISO 2768 as following stats .
| Basic sizes | Thickness | Level | ||
| FM | TO | FM | TO | f |
| 0.5 | 3 | — | 1 | ±0.05 |
| 1 | 3 | ±0.15 | ||
| 3 | 6 | — | 1 | ±0.10 |
| 1 | 4 | ±0.20 | ||
| 4 | — | ±0.30 | ||
| 6 | 30 | — | 1 | ±0.15 |
| 1 | 4 | ±0.30 | ||
| 4 | — | ±0.45 | ||
| 30 | 120 | — | 1 | ±0.20 |
| 1 | 4 | ±0.40 | ||
| 4 | — | ±0.60 | ||
| 120 | 400 | — | 1 | ±0.25 |
| 1 | 4 | ±0.50 | ||
| 4 | — | ±0.75 | ||
| 400 | 1000 | — | 1 | ±0.35 |
| 1 | 4 | ±0.70 | ||
| 4 | — | ±1.05 | ||
| 1000 | 2000 | — | 1 | ±0.45 |
| 1 | 4 | ±0.90 | ||
| 4 | — | ±1.40 | ||
| 2000 | 4000 | — | 1 | ±0.70 |
| 1 | 4 | ±1.40 | ||
| 4 | — | ±1.80 | ||
Main Characteristics
Good corrosion resistance
Aluminum alloy is good on resistant corrosion and keep natural for a long time even socket box stamped parts are placed outside .
No burrs and sharp edges
All edges are chamfered .
Strict dimensions
According to drawing requests completely and choose suitable tolerances for unmarked dimensions .
Over 10 years in stamped or stamping parts , we are very professional on customization and standard parts , our products serve many fields in industry , please contact us if there is any item you are interesting in , Thanks .
