Product Details:
Payment & Shipping Terms:
|
Material: | Spring Steel | Property Class: | 1065 |
---|---|---|---|
Hardness: | HRC 45 | Finish: | Oxidation |
Color: | Black | Length: | 29 |
Width: | 15 | Thiickness: | 0.5 |
High Light: | stamping metal parts,metal stamping products |

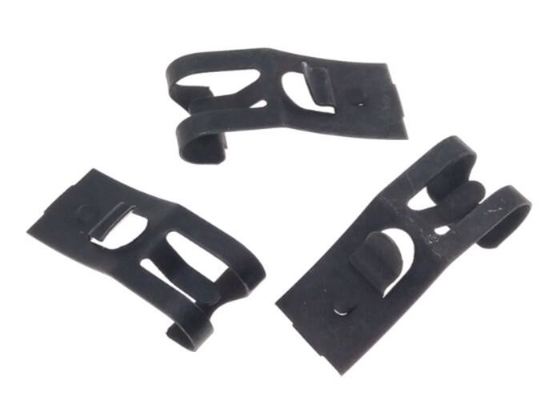

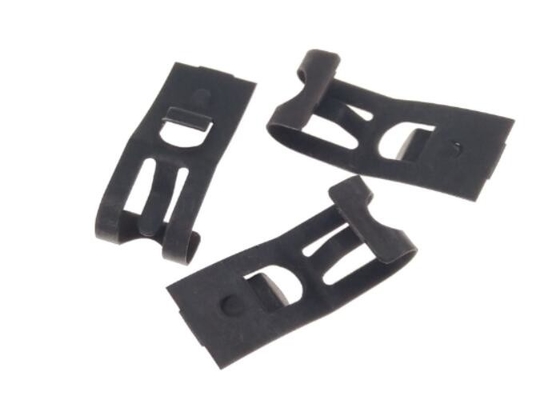

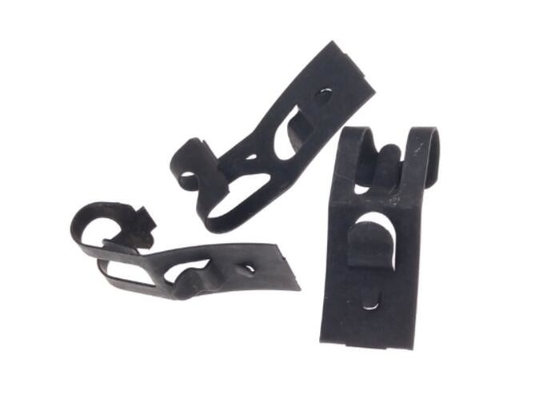

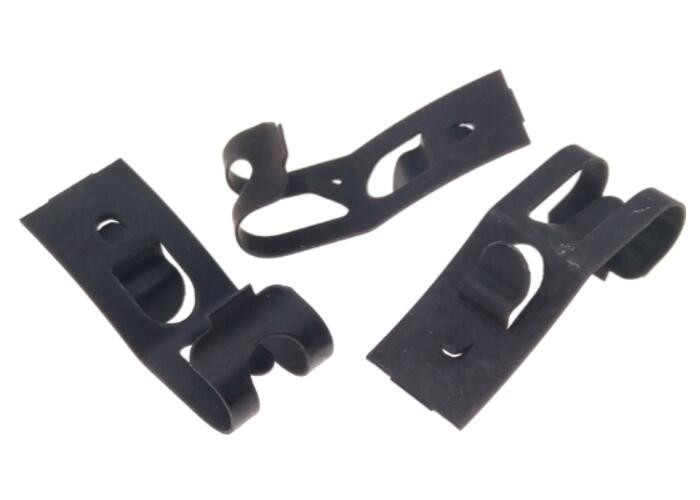

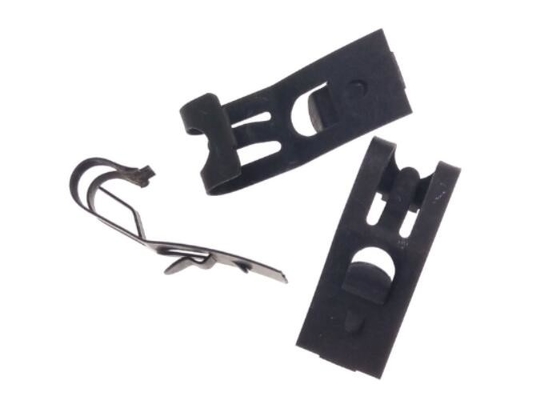

Black Spring Steel Thermostat Stem Support Stamping for Gas Cookers STM2915
Spring steel thermostat stem support stamping part with black oxide finish for applying to gas cookers .
Spring steel material for thermostat stem support stamping parts ensure long service and good flexibility , and black oxide finish matches with the color for gas cooker components .
Mechanical Performance
Material | Spring steel |
Length mm | 29 |
Width mm | 12 |
Thickness | 0.5 |
Tolerance mm | +/-0.1 |
Hardness HRC | 45 |
Color | Black |
Finish | Oxide |
Surface roughness | R6.3 |
Tensile strength σb (MPa) | 1050 |
Yield Strength σs (MPa) | 800 |
Elongation δ 0.2 (%) | 21 |
Reduction of area ψ (%) | 12 |
Finish
Spring steel thermostat stem support stamping parts are plated in oxide with black color for corrosion resistance ,besides , there are more different finish can be taken .
Finish | Colors | Thickness | Charicteristics |
Zinc | Blue ,White ,Black ,Yellow | 5-107μm | Bright and smooth surface ,corrosion resistance |
Nickel | Silver | 1~3μm | Wear resistance ,bright appearance , anti-corrosion |
Polishing | Silver | 0.01mm ( reference ) | Improving brightness of surface |
Tin | Silver | 0.13~1.27μm | Good ductility ,corrosion resistance ,lower melting point ,eco-friendly ,brightness |
Brass | Copper | 5gm~8gm | Good dispersibility ,Bright appearance |
Chrome | Silver white | 0.25~0.5μm |
Harden surface ,Bright surface ,Heat resistance ,Wear resistance Corrosion resistance and eco-friendly
|
Specific technical dimensions
Note : made from spring steel with thickness 0.5 mm
Features
※ Perfect flexibility
※ No Burrs and scratch
※ Non-corrosive
※ Environmentally-friendly
※ Super materials
※ Strict dimensions
Material
Thermostat stem support stamping parts are made from spring steel with grade 1065 .
C | Si | Mn | S | P | Cu | Cr | Ni | Cr |
0.65 | 0.35 | 1.2 | 0.03 | 0.035 | 0.25 | 0.25 | 0.25 | 0.25 |
Packing
Packed in poly bag ,200 pcs each and then in cartons
Our Advantages
★ Cheap price with best quality
★ Quick delivery with good packing
★ Small MOQ with Customization
★ Affluent experience with skillful workers
★ Advanced equipments with strict quality control
We are also manufacturing gas cookers fittings stamping parts like cover for gas cooker ,burning plate stamping parts ,Supports , Gas pipes , Ignition pin for gas cooker etc .
