Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless / Steeel Aluminum Brass | Finish: | Zinc 、Polishing 、Paint 、Passivated |
|---|---|---|---|
| Tolerance: | ISO 2768 | Precision: | F |
| Procee: | Stamping | DImension: | Customization |
| High Light: | stamping metal parts,metal stamping products |
||

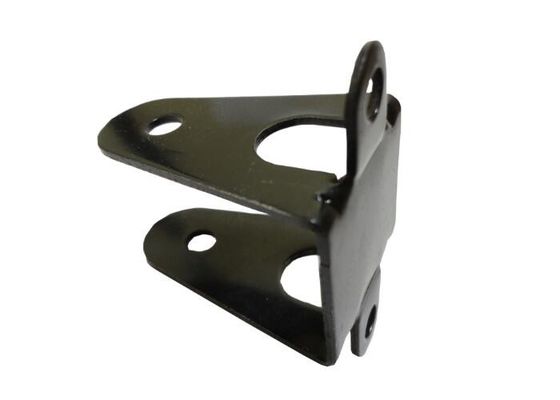

High Precision Metal Stamping Products Custom Corrosion Resistance
Exceeding 10 years experience on stamping , we manufacture different stamping parts with different materials for a number of applications , these stamping parts are widely applied to automotive,machines,electrics,Tools,construction and lighting etc .the material for stamping contains
● Carbon steel
● Mild Steel
● Stainless steel
● Brass
● Copper
● Alloy steel
● Aluminum
● Titanium
Above materials with different tensile strength and characteristics meet different applications in industry and agriculture .
★ Communications
★ Automotive
★ Military equipments
★ Aerospace
★ Airline
★ Furniture
★ Construction
★ Electronics
★ Sport equipments
★ Lighting
★ Marine
★ Medical devices
We manufacture from micro stamping parts to large stamping parts with length over 2 meters , the minimum tolerance can be up to 0.01mm (0.0004 inch ) for some stampings .
For the most metal stamping parts have to be plated after formed , refer to ISO10289 and GB 6461 standard or custom requirement for platings , you can choose the best one according to your request .
| Finish | Description |
| Zinc | Various color can be choosed and perfect on anti-corrosion |
| Nickel | Making the surface more bright and hardened and the performance of screws will be improved |
| Polish | Improving the brightness of surface but is inferior is not as zinc in anti-corrosion |
| Tin | It is very perfect to be anti-rust , and widely used to components |
| Brass | It is usually used with Nickel for more good anti-corrrosion. |
| Paint | Its powder paint with colors to prevent surface from rust. |
| Oxide | Oxide is often black color |
| Chrome | Chrome finish can improve the surface hardness of parts , and keep plating color in long time and corrosion resistance . |
Strict dimensions and tolerances
Generally , ±0.1 mm for the most dimensions and we according to ISO 2768-m for unspecified sizes as follows
| Basic sizes | Thickness | Level | |||||
| FM | TO | FM | TO | f | m | c | v |
| 0.5 | 3 | — | 1 | ±0.05 | ±0.10 | ±0.15 | ±0.20 |
| 1 | 3 | ±0.15 | ±0.20 | ±0.30 | ±0.40 | ||
| 3 | 6 | — | 1 | ±0.10 | ±0.15 | ±0.20 | ±0.30 |
| 1 | 4 | ±0.20 | ±0.30 | ±0.40 | ±0.55 | ||
| 4 | — | ±0.30 | ±0.40 | ±0.60 | ±0.80 | ||
| 6 | 30 | — | 1 | ±0.15 | ±0.20 | ±0.30 | ±0.40 |
| 1 | 4 | ±0.30 | ±0.40 | ±0.55 | ±0.75 | ||
| 4 | — | ±0.45 | ±0.60 | ±0.80 | ±1.20 | ||
| 30 | 120 | — | 1 | ±0.20 | ±0.30 | ±0.40 | ±0.55 |
| 1 | 4 | ±0.40 | ±0.55 | ±0.75 | ±1.05 | ||
| 4 | — | ±0.60 | ±0.80 | ±1.10 | ±1.50 | ||
| 120 | 400 | — | 1 | ±0.25 | ±0.35 | ±0.50 | ±0.70 |
| 1 | 4 | ±0.50 | ±0.70 | ±1.00 | ±1.40 | ||
| 4 | — | ±0.75 | ±1.05 | ±1.45 | ±2.10 | ||
| 400 | 1000 | — | 1 | ±0.35 | ±0.50 | ±0.70 | ±1.00 |
| 1 | 4 | ±0.70 | ±1.00 | ±1.40 | ±2.00 | ||
| 4 | — | ±1.05 | ±1.45 | ±2.10 | ±2.90 | ||
| 1000 | 2000 | — | 1 | ±0.45 | ±0.65 | ±0.90 | ±1.30 |
| 1 | 4 | ±0.90 | ±1.30 | ±1.80 | ±2.50 | ||
| 4 | — | ±1.40 | ±2.00 | ±2.80 | ±3.90 | ||
| 2000 | 4000 | — | 1 | ±0.70 | ±1.00 | ±1.40 | ±2.00 |
| 1 | 4 | ±1.40 | ±2.00 | ±2.80 | ±3.90 | ||
| 4 | — | ±1.80 | ±2.60 | ±3.60 | ±5.00 | ||
Quality Assurance
1 , Multiple checking during production
Our stamping parts are checked from material to finished product , each step and process are controlled to ensure the quality .
2 , High precise stamping machines
We take the most advanced stamping machines with numerical control , the tolerance can be up to 0.05mm .
3 , Precise and assorted stamping dies .
All our stamping dies are in-house , these stamping dies are made in high tensile strength stamping dies alloy steel like Cr12MoV,Cr12Mo1V1(D2),SKD11 and W18Cr4V etc ; our stamping dies cover full stamping processes blanking ,deep drawing ,bending ,edge curl and so on , the stamping dies on precision is ±1.5μm and surface roughness Ra0.1～0.2μm .
4 , Advanced design
We take the most advanced drawing systems CAD,PROE ,SOLIDWORKS etc to design stamping parts , and make stamping parts are to be in the best prototype before massive production .
Stamping Parts Features
※ Bright surface
※ No Burrs
※ Non-corrosive
※ Environmentally-friendly
※ Super materials
※ Strict dimensions
We have scores of sets of advanced stamping machines with production capacity 100 tons each month , we can manufacture different stamping parts with complex structures for various materials ; Small quantity is available for us .
