Product Details:
Payment & Shipping Terms:
|
| Material: | Brass | Color: | Golden |
|---|---|---|---|
| Hardness: | HV250 | OD: | 20 |
| Length: | 30 | Max Load: | 100 N/mm2 |
| Working Temperature: | < 300°C | Bearing Rotary ( Sliding ) Speed: | 0.4m/s |
| High Light: | bushings and bearings,metric bushings |
||

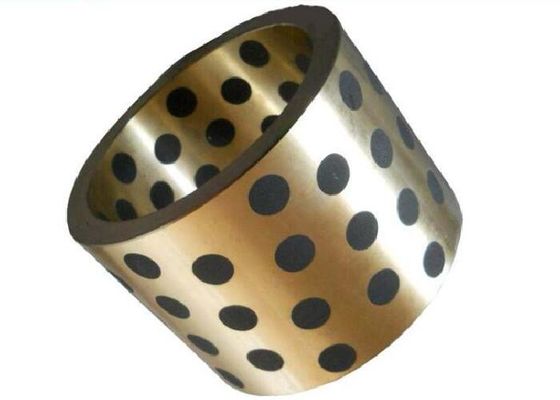

20 X 30mm Plain Bearing Bush Inlaid Sliding JDB Style Brass Sleeve Self Lubricating Bearings
Self-lubricant inlaid bearing is also known as oilless sliding bearing , it is a special design for equipments with heavy-duty , slow speed or circulating motion characteristics . the material consists of metal brass and solid lubricant , solid lubricant is absorbed by brass bearing body when bearings are put into it and this lubricant will reduce friction that from bearing .
20 X 30 Self -lubricant Inlaid Sliding Bearing Bushing
Material : ZCuSn10P1 or ZCuPb30
Hardness : 25HRC
Working Temperature : < 300°C
Bearing Rotary ( sliding ) speed : 0.4m/s
Appling lubricant speed : 5m/s
Load : 100 N/mm2
Friction : 0.15
Characteristics
Self-lubricant bearing bushings with more advantages compared to traditional bearings
Perfect Self-lubricant
Self-lubricant bearing bushing is not required extra lubricant during operation compared to traditional bearing bushings and reduce much friction .
Heavy-duty
Harden metal material with perfect lubricant
Wear resistance
Lubricant on bearing can reduce much friction when bearings are working .
Resistant high temperature
Self-lubricant bearing can work well in 300°C .
Specifications
Normally , diameter for self-lubricant sliding bearings from 12 to 50 and the length is from 8 to 80 mm .
Unit : mm
| d | D | L | ||||||||||||||
| 8 | 10 | 12 | 15 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | ||
| 8 | 12 | ● | ● | ● | ● | |||||||||||
| 10 | 14 | ● | ● | ● | ● | ● | ||||||||||
| 12 | 18 | ● | ● | ● | ● | |||||||||||
| 13 | 19 | ● | ● | ● | ● | |||||||||||
| 14 | 20 | ● | ● | ● | ● | |||||||||||
| 15 | 21 | ● | ● | ● | ● | ● | ||||||||||
| 16 | 22 | ● | ● | ● | ● | ● | ||||||||||
| 18 | 24 | ● | ● | ● | ● | ● | ● | |||||||||
| 20 | 28 | ● | ● | ● | ● | ● | ||||||||||
| 22 | 32 | ● | ● | ● | ● | ● | ● | |||||||||
| 25 | 33 | ● | ● | ● | ● | ● | ||||||||||
| 30 | 38 | ● | ● | ● | ● | ● | ● | ● | ● | |||||||
| 35 | 45 | ● | ● | ● | ● | |||||||||||
| 40 | 50 | ● | ● | ● | ||||||||||||
| 45 | 55 | ● | ● | |||||||||||||
| 50 | 60 | ● | ● | |||||||||||||
Note
1 . The surface finish for self-lubricant bearing is 1.6
2 . Tolerances Grade of mating sleeve for self-lubricant bearing is H7.
3 . Tolerance for different lengths
| Length | Tolerance |
| 4~12 | ±0.25 |
| 12~60 | ±0.5 |
| 60~80 | ±0.75 |
Applications
★ Truck and Car
★ Train
★ Engineering machines
★ Vessel
★ Aerospace
★ Sport equipments
★ Airplane
Competitive Advantages
※ Top quality with cheap price
※ Strict dimensions control and high precision
※ All are eco-friendly
※ Quick delivery
※ Perfect sales-after service
Besides Self -lubricant Inlaid Sliding Bearing Bushing , we also manufacture stainless steel shaft bushings ,Brass shaft bushings ,Carbon steel shaft bushings and Aluminum shaft bushings . If you are interesting in our bushings , please call us 86-769-82601418 or email group1@vedali.com , Thanks .
