Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Property Class: | 303 |
|---|---|---|---|
| Hardness: | HRC 55 | Diameter: | 6 |
| Length: | 35 | Roughness: | Ra1.5 |
| Standard: | DIN 6325 | Tolerance: | ISO 2768 |
| High Light: | safety pin fasteners,hardware pins,6 x 35mm stainless steel dowel pin |
||

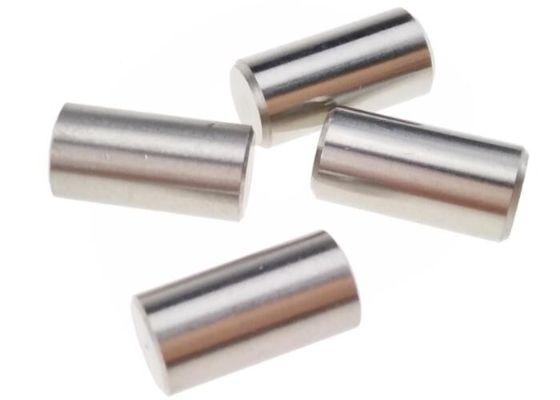

DIN 6325 Parallel Polished Fastener Pins 6 x 35mm Hardened Stainless Steel Dowel Pins
Stainless steel dowel pin is a solid shaft and both ends are chamfered , it is used for locating in the precise machines or equipments for scientific research ..the diameter tolerance is very tight to 0.01 or more smaller and general tolerance is 0.05mm .
DIN6325 Stainless Steel Dowel Pin
Tight tolerance 0.01mm
Polished surface with perfect fineness
High tensile strength
Specifications
We manufacture different sizes dowel pin based on DIN 6325 standard and we accept customized sizes
| d | c | l |
| 6 | 1.2 | 35 |
Unit : mm
We manufacture more sizes for dowel pins
| d | c | l | |
| min | max | ||
| 0.6 | 0.12 | 2 | 6 |
| 0.8 | 0.16 | 2 | 8 |
| 1 | 0.2 | 4 | 10 |
| 1.2 | 0.25 | 4 | 12 |
| 1.5 | 0.3 | 4 | 16 |
| 2 | 0.35 | 6 | 20 |
| 2.5 | 0.4 | 6 | 24 |
| 3 | 0.5 | 8 | 30 |
| 4 | 0.63 | 8 | 40 |
| 5 | 0.8 | 10 | 50 |
| 6 | 1.2 | 12 | 60 |
| 8 | 1.6 | 14 | 80 |
| 10 | 2 | 18 | 95 |
| 12 | 2.5 | 22 | 140 |
| 16 | 3 | 26 | 180 |
| 20 | 3.5 | 35 | 200 |
| 25 | 4 | 50 | 200 |
| 30 | 5 | 60 | 200 |
| 40 | 6.3 | 80 | 200 |
| 50 | 8 | 95 | 200 |
Materials
Stainless steel
Including SUS 201 , SUS303 , SUS 304 ,SUS 316 , SUS 416 ,SUS 430 and SUS 420 .
More materials options for dowel Pins
Carbon steel
Material contains 1008 , 1010 , 1018 , 1022 , 1035 , 1045 , SCM 435 and 40CRO
Aluminum : 2024 , 6061 and 7075
Brass : CuZn35 , CuZn37 , CuZn40 , CuZn37Pb1 and CuZn39Pb1
Finish
| Finish | Description |
| Zinc | Various color can be choosed and perfect on anti-corrosion |
| Nickel | Make the surface of the screws more bright and hardened and the performance of screws will be improved |
| Polish | Improving the brightness of surface but is inferior is not as zinc in anti-corrosion |
| Tin | Very perfect to be anti-rust , and widely used to components |
| Brass | It is usually used with Nickel for more good anti-corrrosion. |
| Paint | Its powder paint with colors to prevent surface from rust. |
| Oxide | Oxide is often black color |
Applications
Dowel pins are usually used to high accurate products for locating purpose .
● Aerospace
● Airplane
● Vehicle
● Communications
● Mechanical machines
● Satellite
● Sports equipments
● Industrial Robots
● Measuring equipments
Competitive Advantages
※ Top quality with cheap price
※ Strict dimensions control and high precision
※ All Screws are eco-friendly
※ Quick delivery
※ Perfect sales-after service
