Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Property Class: | 303 |
|---|---|---|---|
| Finish: | Polishing | Thread Diameter: | M10 |
| Length: | 26 | Pitch: | 1.5 |
| Hardness: | HRC65 | Tensile Strength: | 550 σb (MPa) |
| High Light: | safety pin fasteners,hardware pins,HRC65 stainless steel threaded pins |
||

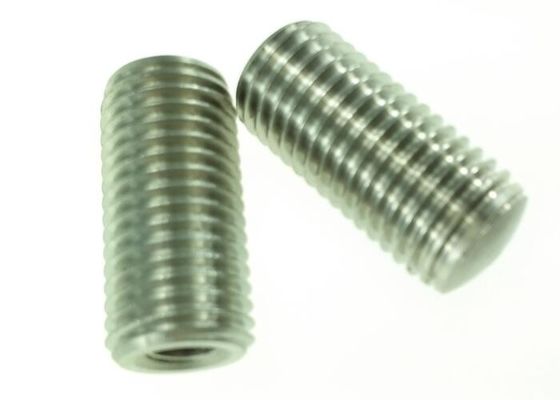

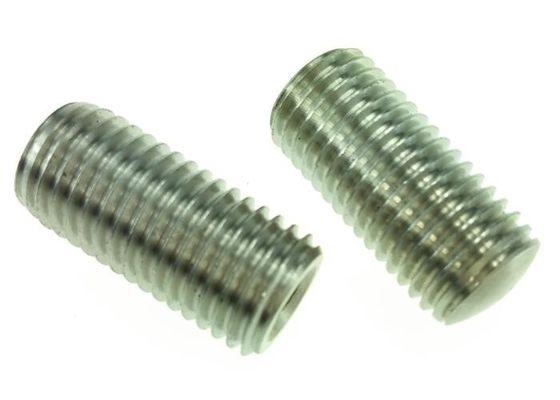

Standard Stainless Steel Threaded Locating Pins 10 x 26 mm For Connector
Stainless steel threaded pins with round shape ends and full threads on shaft for connecting parts .
Thread pins are made from stainless steel for heavy load in machinery operation .
Material
Stainless steel
Property class
SUS303
Chemical Elements
| C | Si | Mn | S | P | Mo | Cr | Ni |
| 0.15 | 1 | 2 | 0.15 | 0.2 | 0.6 | 18 | 9 |
Mechanical Property
| Tensile strength σb (MPa) | 550 |
| Yield Strength σs (MPa) | 210 |
| Elongation δ5 (%) | 50 |
| Reduction of area ψ (%) | 55 |
Physical Performance
| Fusing point(℃) | 1290~1368 |
| Specific heat capacity(0~100℃,KJ·kg-1K-1) | 0.5 |
| Heat conductivity(W·m-1·K-1) | (100℃)15.5 |
| Resistivity(20℃,10-6Ω·m) | 0.73 |
Specific Technical Data
| Material | Stainless steel |
| Length mm | 26 |
| Diameter mm | 10 |
| Tolerance mm | +/-0.1 |
| Color | Grey |
| Finish | Polishing |
| Surface roughness | Ra3.0 |
Features
※ Bright golden surface
※ No Burrs and scratch
※ Non-corrosive
※ Environmentally-friendly
※ Super materials
※ Strict dimensions
Our Advantages
★ Cheap price with best quality
★ Quick delivery with good packing
★ Small MOQ with Customization
★ Affluent experience with skillful workers
★ Advanced equipments with strict quality control
