Material: | Titanium Alloy | Finish: | Oxide |
---|---|---|---|
Thread: | M6 | Length: | 20 |
Hardness HV: | 350 | Color: | Golden |
Highlight: | safety pin fasteners,hardware pins,12mm titanium shaft pin |

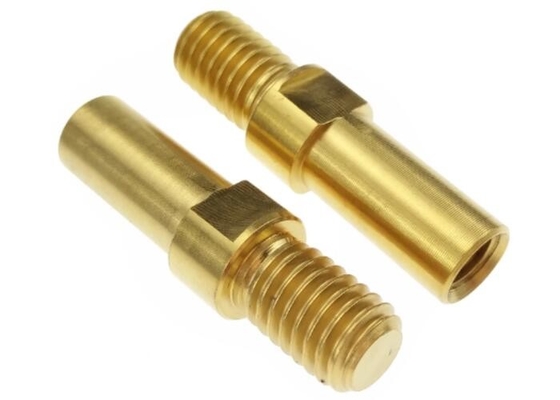

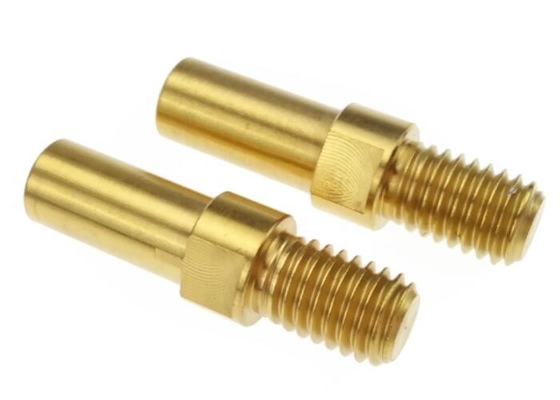

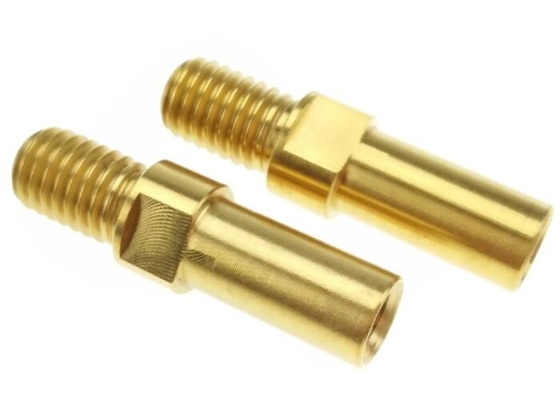

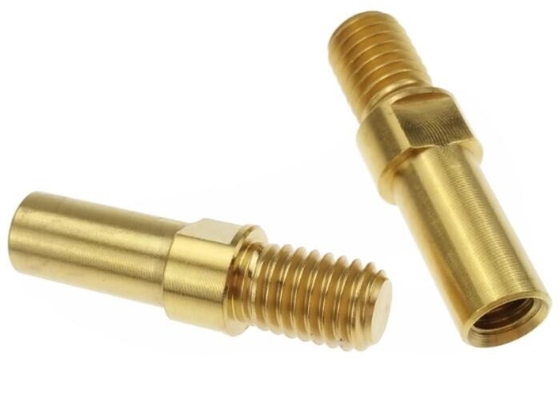

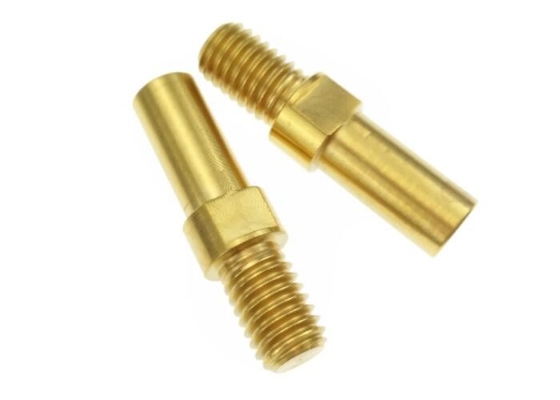

12 mm Titanium Shaft Pin Fastener Thread M6 for Auto Spare Parts Golden Oxide Finish
Titanium shaft pins are made from alloy titanium with oxide golden finish , it is used for auto for connecting and fixing . Shaft pin with standard M6 threads and non-threaded shaft , Titanium shfat pins are suitable for high or low temperature and heavy duty applications .
Material
Titanium shaft pins are made from Ti-6Al-4V ( TC4 )
Specification
Thread diameter | M6 |
Thread length | 12 |
Shaft diameter | 6 |
Shaft length | 5 |
Standard
Titanium shaft pins for automotive fasteners are normally customized according to applications .
Finish
Oxide golden
Physical Performance
Tensile strength Mpa | 950 |
Yeild strength Mpa | 750 |
Hardness HV | 350 |
Density g/cm3 | 4.5 |
Elongation % | 35 |
Product characteristics
1 . Perfect corrosion resistance
Titanium shaft pins are resistant of strong acid or alkalinity and not easy to be rusted .
2 . Harden material
Hardness for titanium shaft pins up to HV350 .
3 . Resistant high and low temperature
Titanium shaft pins can be worked from -250 to 500 degree .
4 . No burrs or scratch
5 . Long service
6 . Not easy to be broken
7 . Not easy to be conducted
8 . High tensile strength with light weight
Alloy titanium shaft pins can be up to 1200 Mpa on tensile strength but density is only 4.5 g/cm3 .
Installation
1 . Operated by spanner .
2 . Do not break threads for smooth installation .
3 . Make sure screws are located exactly to threaded hole centre of objects .
4 . Do not put over torque on Hi-low threads screws .
5 . Not suitable for welding .
Application
Titanium shaft pins are widely used to automotive industry , and aviation , precise equippments and other industrial areas
