Product Details:
Payment & Shipping Terms:
|
| Material: | Nylon | Property Class: | PA66 |
|---|---|---|---|
| Fire Resistance: | UL94V-2 | OD: | 10 Mm |
| ID: | 6 Mm | Length: | 15 Mm |
| Color: | White | Thikcness: | 2 Mm |
| High Light: | nylon washers spacers,metal stamped parts |
||

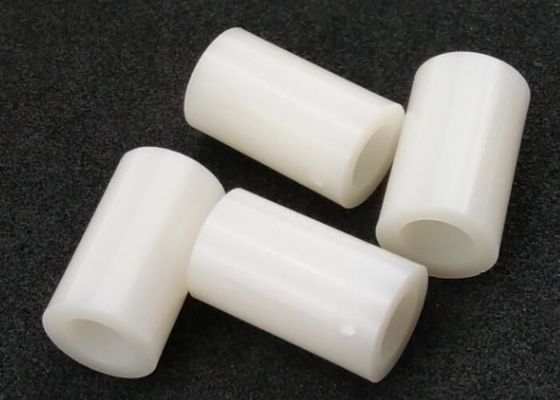

Semi Transparent Round Nylon Spacer Bushings Insulated For Wire Assembly
Plastic round spacers bushings are not with threads for wire assembly , semi transparent plastic with outstanding fire resistant performance , they are widely used to electric items .
Material
Plastic round spacers bushings are made of nylon PA66 .
Key features
Insulated material
Resistance to fire
Not easy to be aged
Water proof
Wear resistant
Performances
| Physical Performance | |
| Density ( g/cm3) | 1.14 |
| Water absorption % | 3 |
| Shrinkage % | 1～2 |
| Mechanical Property | |
| Tensile strength MPa | 60～80 |
| Elongation at break % | 2.2 |
| Bending strength MPa | 100～120 |
| Modulus of elasticity for bending MPa | 2000 ～3000 |
| Notched Impact Strength(J/m) | 60～100 |
| HR hardness | 118 |
| Electrical Performance | |
| Dielectric constant | 1.63 |
| Arc resistance sec | 130～140 |
| Specific volume resistance Ω·cm | 1.83×1015 |
| dissipation factor | 100～400 |
| Dielectric strength(kV/mm) | 20～30 |
| Thermal Performance | |
| Normal working temperature ℃ | 80～120 |
| Brittle temperature ℃ | -30 |
| Melting temperature ℃ | 252 |
| Pyrogenic decomposition temperature ℃ | 350 |
| Matin heatproof ℃ | 50～60 |
Specification
| Outer diameter | 10 |
| Inner diameter | 6 |
| Length | 15 |
| Thickness | ±0.1 |
Unit : mm
Tolerances
| Normal Sizes | Level | |
| TG7 | ||
| W | NW | |
| 1-3 | 0.13 | 0.2 |
| 3-6 | 0.2 | 0.29 |
| 6-10 | 0.29 | 0.35 |
| 10-18 | 0.35 | 0.42 |
| 18-30 | 0.42 | 0.5 |
| 30-50 | 0.5 | 0.6 |
| 50-80 | 0.6 | 0.9 |
1 ,value for each level means " ± " tolerance .
2 , " W " means tool specific dimensions , " NW ' means non tool specific dimensions .
