Plastic High Precision Gears 10mm Printer White Small Spur Gears Straight Teeth

Plastic High Precision Gears 10mm Printer White Small Spur Gears Straight Teeth
Plastic High Precision Gears 10mm Printer White Small Spur Gears Straight Teeth Plastic High Precision Gears 10mm Printer White Small Spur Gears Straight Teeth Plastic High Precision Gears 10mm Printer White Small Spur Gears Straight Teeth Plastic High Precision Gears 10mm Printer White Small Spur Gears Straight Teeth

Large Image :  Plastic High Precision Gears 10mm Printer White Small Spur Gears Straight Teeth

Product Details:
Place of Origin: China
Brand Name: VDL
Certification: ISO
Model Number: PG1005
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 20000 pcs each carton in bulk with dimension 20 X 22 X 25 cm , 500 cartons to a 20 ft container
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union , Paypal
Supply Ability: 500 , 000 pcs per month
Detailed Product Description
Material: Nylon Property Class: PA 66
Fire Resistance: UL 94V-2 Color: White
Modulus: 0.5 Teeth Numer: 10
OD: 6 Pressure Angle: 20°
High Light:

custom plastic gears

,

lubricating plastic gears

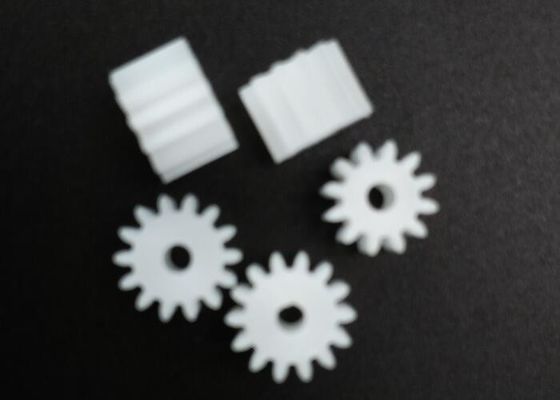

Plastic High Precision Gears 10mm Printer White Small Spur Gears Straight Teeth





Cylinder round spur gear with straight teeth for printer , a pin hole in centre for fixing spur gear .



Technical Data



Modulus m  0.5
Number of teeth z  10
Outside diameter da  6
Root diameter df  3.75
Reference circle d  5
Depth of tooth h  1.12
Tooth addendum ha  0.5
Tooth Dedendum hf  0.625
Pitch p  1.57
Teeth thickness s  0.8
Pressure angle ɑ  20°
Full length L 10

Unit : mm





Precsion



Level 9 based on ISO standard .





Material



Spur gears are made from plastic nylon PA66





Application



10mm length spur gear with straight teeth is used for printer , it is also used to other items like



▲ Duplicating machine

▲ Speed reducer

▲ Timing device

▲ Micro electric motor

▲ Camera

▲ Instruments and meters

▲ Vacuum cleaner

▲ Light for car

▲ Toy





Mechanical Property



Tensile strength MPa 60~80
Elongation at break % 2.2
Bending strength MPa 100~120
Modulus of elasticity for bending MPa 2000 ~3000
Notched Impact Strength(J/m) 60~100
HR hardness 118





Electric Performance

Dielectric constant 1.63
Arc resistance sec 130~140
Specific volume resistance Ω·cm 1.83×1015
dissipation factor 100~400
Dielectric strength(kV/mm) 20~30







Features



Good self-lubricant



High mechanical property



Resistant high temperature

Normally , the part can be operated smoothly at temperature 150℃ and thermal deformed temperature is up to 250℃ when parts with glass fiber .



Perfect elongation

Elongation at break is 2.2% according to ISO 527 testing method .



Corrosion resistance



Good insulation

Specific volume resistance is 1.83×1015 and resistance to high breakdown voltage support part to be good insulated .



Resistant impact

60 – 80 KJ/M2 normally .



Resistant fire

Generally , the fire resistance is UL94V-2 and UL64V-0 for special parts .





Resistance to low temperature

Plastic spur gear can be workable at -30℃



We make more plastic gears with different specifications for many fields in industry , please contact us if you are interesting in any gear , we are able to develop customized plastic gears as well .
