Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Property Class: | 18-8 |
|---|---|---|---|
| Hardness: | HRC 65 | Finish: | Polishing |
| Specification: | M6 | Panel Thickness: | 0.06 Inch |
| High Light: | nuts and bolts hardware,nuts bolts and fasteners |
||

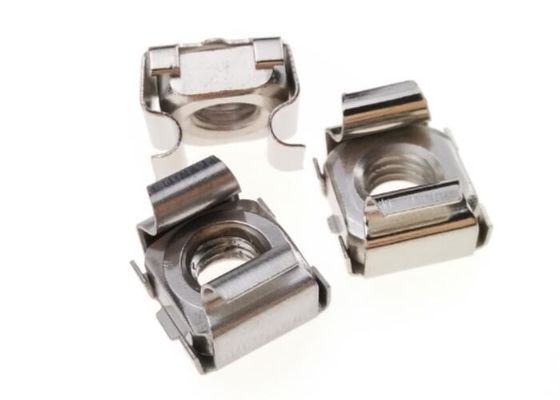

Polished Hardware Nuts Bolts Sqaure Mounting Stainless Steel M6 Cage Nuts
Cage nuts are also named captive nuts or caged nuts , it has a two wings around the square nut and square nuts with a threaded holes that provides locking for a bolt or a screw .
The wings of cage nuts will be inserted into square holes when compressed , in the most cases , the wings are made from spring steel that with good flexibility , the sizes for the spring steel clips decide the thickness of metal panel and the specifications of hole sizes to that the spring steel clips hold the nuts .
| Rivet nut size | A | B | N | K | P |
| #8-32 | 0.30-0.33 | 0.50-0.52 | 0.05-0.07 | 0.13 | 0.025-0.063 |
| #10-24 | 0.30-0.33 | 0.50-0.52 | 0.05-0.07 | 0.16 | 0.064-0.100 |
| #10-32 | 0.30-0.33 | 0.50-0.52 | 0.05-0.07 | 0.16 | 0.025-0.630 |
| 1/4-20 | 0.30-0.33 | 0.51-0.53 | 0.05-0.07 | 0.19 | 0.025-0.063 |
| 5/16-18 | 0.39-0.42 | 0.65-0.67 | 0.05-0.07 | 0.22 | 0.093-0.125 |
| 3/8-18 | 0.39-0.42 | 0.65-0.67 | 0.09-0.11 | 0.22 | 0.093-0.125 |
| 1/2-13 | 0.51-0.56 | 0.87-0.89 | 0.1-0.12 | 0.31 | 0.093-0.125 |
Unit : Inch
Cage nuts are made of carbon steel or stainless steel material and usually the wings are spring steel
Applications for Cage Nuts
★ Car and Trucks
★ railway
★ Aerospace
★ Vessels
★ Bus
★ Telecommunication
★ Machines
Features
★ Simple and practical design
★ Bright appearance
★ Easy to operate
★ Excellent Locking performance
★ High tensile strength
Package
Our packages are assorted and strong , we can arrange special packages according to your requirements , all Packed in Seaworthy or airworthy for Export .
We offer many specifications with metric for cage nuts and we accept customization also , if you are interesting in our cage nuts , please contact us by phone 86-769-82601418 or email us via group1@vedali.com .
