| Material: | Carbon Steel | Property Class: | 6.8 |
|---|---|---|---|
| Hardness: | HRC 35 | Finish: | Zinc |
| Diameter: | M5 To M7 | Length: | 10 To 150 |
| High Light: | hardware screws,hardware fasteners |
||

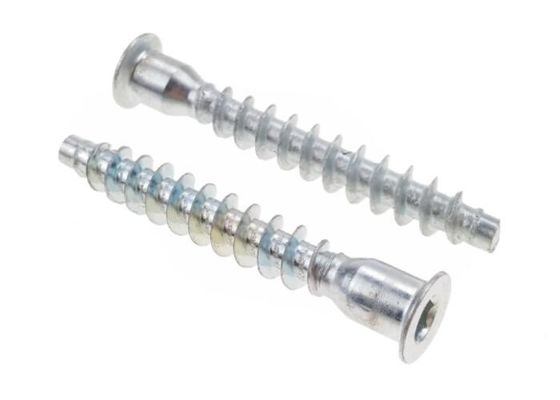

M5 Hex Socket Steel Confirmat Screws for Wood Furniture Zinc Rust Proof
Confirmat screw is a special design for the wooden furniture pieces , usually , it has a inside hex socket drive on the head and countersunk head is 120°; The threads for confirmat screw is more sharp and thinner , Flank angle for threads is about 30°and pitch is more wider than the normal screws .
Specification
Confirmat screws are sized as 5.0 , 6.3 and 7.0 normally , and the length can be up to 70 mm .
| d | L | D | S | Shaft Length | Pitch |
| 5X40 | 40 | 7.0 ~ 7.5 | 3 ~ 3.1 | 6 | 2.4 |
| 5X50 | 50 | 7.0 ~ 7.5 | 3 ~ 3.1 | 6 | 2.4 |
| 6.3X50 | 50 | 9.3~ 9.7 | 4.0 ~ 4.12 | 10 | 2.6 |
| 6.3X60 | 60 | 9.3~ 9.7 | 4.0 ~ 4.12 | 10 | 2.6 |
| 6.3X70 | 70 | 9.3~ 9.7 | 4.0 ~ 4.12 | 10 | 2.6 |
| 7X50 | 50 | 9.5 ~ 10.5 | 4.0 ~ 4.12 | 10 | 3.0 |
| 7X60 | 60 | 9.5 ~ 10.5 | 4.0 ~ 4.12 | 12 | 3.0 |
| 7X70 | 70 | 9.5 ~ 10.5 | 4.0 ~ 4.12 | 14 | 3.0 |
| 7X80 | 80 | 9.5 ~ 10.5 | 4.0 ~ 4.12 | 14 | 3.0. |
Material
Confirmat screws are made of carbon steel for wooden pieces .
| Description | Material Model |
| Carbon Steel | 1008 ,1010 ,1018 |
Finishing
Confirmat screws are plated in zinc with various colors for bright and smooth and resistant corrosion
Optional Head Drives
Confirmat screws are manufacutured in hex socket for the most furnitre parts but they are can be Phillips ,Square and Phillips Pozi etc . more drives as following shows
Application
Confirmat screws are used for furniture parts like bed , Chairs , door ,tables ,Cabinets etc .
Features
★ Harden material
★ Eco-friendly
★ Fast drilling performance
★ Easy operation
★ Long service
