Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point

Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point
Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point

Large Image :  Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point

Product Details:
Place of Origin: Guangdong, China
Brand Name: V
Payment & Shipping Terms:
Minimum Order Quantity: 5000 pieces
Price: $0.02 - $0.30/pieces
Packaging Details: 1. In bulk : Polybag ( 1-5 kgs) and cartons (8-20 kgs ) , 0.01 CBM / CTN<br>2. Boxes : Box ( 1-3 kgs) and cartons ( 5-15 kgs ) , 0.01 CBM / CTN<br>3. All cartons to a pallet ( 1X1.2 m )<br>4. Customized packing
Supply Ability: 300 Ton/Tons per Month
Detailed Product Description
Material: Steel, Steel Head Style: Flat
Product Name: Confast Screws Finish: Dacromet
Grade: 6.8 Head Type: Countersunk
Length: 35 Thread Diameter: 14#
Pitch: 2.54 Point: Square Cone
High Light:

Cross Recess Confast Concrete Screws

,

Flat Head Confast Concrete Screws

,

Confast Concrete Fastener Screws

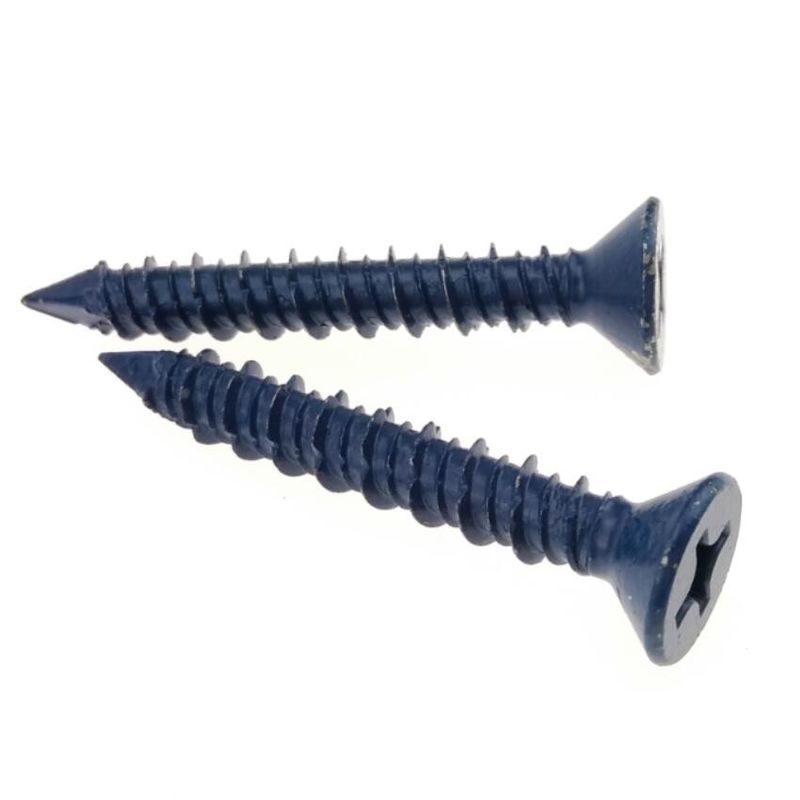

Cross Recess Flat Head Hi low Threads Confast Screws Square Cone Point for Concrete



Product Description

Metal confast screws are made of carbon steel with harden treatment grade 6.8 , cross recess in the centre of the head and 90 degree countersunk head design for taper hole of material . confast screws with a square cone point that improves drilling perfromance and stop conrete screws to back out ,  self tapping threads with cutting line from begainning to end of the threads , this design is helping screws to fast to drill material under pressure .



Generally , confast screws with high tensiles strength for drill block or concrete objects .  dacromet finish on surface is perfect for resistance of corrosion .



Technical Data



Items

Description

Remark


Material

Steel

6.8

Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 0

Finish / Plating

 Dacromet

Blue

Hardness

42

 HRC

Tensile strength MPA

450



Standard

 Custom



Dimensions

Thread dia.

14#

Head dia.

12.5

Full length

15

Head height

4.5

Pitch

 2.54

Head socket

Hex

Plating for confast screws have more options according to applications



Zinc , Nickel , Brass , Gold , Oxide , Paint , Passiviation , Polish , Chrome , Dacromet , Geomet , Sand blasting and Silver printing



Product Features

1 . Quick installation

Standard cutting self tapping screw with square cone point .



2 .Strict dimension with tolerance



3. Longer service



4 . Not easy to be rusted

Environmetal blue dacromet finish can stop confast screws to be rusted .



5 . No burrs or scratch .



6 . High speed feature .



7 . Harden material



Tips for application



1 . Suitalbe for concrete block .



2 . Operated confast screws in screwgun with phillips drive .



3 . Drill a small with about 3 mm depth hole before installation .



4 . Do not hammer screws for longer service .





Product Application

Flat head dacromet confast screws are mainly used to buliding fastening like conrete wall .



How we pack

Normal packing



1. In bulk : Polybag ( 1-5 kgs) and cartons (8-20 kgs ) , 0.01 CBM / CTN



2.  Boxes : Box ( 1-3 kgs) and cartons ( 5-15 kgs ) , 0.01 CBM / CTN



3.  All cartons to a pallet ( 1X1.2 m )



4.  Customized packing

Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 1

Note : Objects showed in picture are only for reference , not stand for described items .



Optional Products



We manufacture various hardware parts , you can find and click following descriptions to see more items .



Screws



 Various standard and non-standard fastener screws with qualified materials for different applications .

Nuts and bolts

 High tensile strength bolts nuts for engineering projects .

Washers and spacers

 Different materials washers and spacers for mechanical and clectronic parts

Fastener Pins

 Precise mechanical tolerances and good quality for industry .

Plastic Parts

 Customized manufacturing service and top materials for communication and electronics and auto etc .



Quality Guarantee



Precise testing equipments and tools for hardness , dimensions , corrosion resistance and pass rate etc . our tolerance for tools is up to 0.005 mm .

All products are compliance with RoHS and REACH standards

 Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 2

 Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 3

Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 4

 Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 5

 Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 6

 Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 7



Note :

We are available for customized requests on quality





Production Capacity

Stamping parts with complicated designs , min. tolerances to 0.01mm (0.0004 inch ) , monthly capacity ups to 100 tons .



Availabe material :

1. Carbon steel

2. Brass

3. Aluminum

4. Stainless steel

5. Plastic

6. Various alloy steel eg. titanium alloy .

Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 8

Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 9

Precise turning machines and CNC , tolerances are up to 0.01 and 0.008 mm for limitaiton . 5 million pcs monthly capacity .



Availabe material :



1. Carbon steel

2. Brass

3. Aluminum

4. Stainless steel

5. Plastic

6. Various alloy steel eg. titanium alloy .



Assorted fastener machines to make different screws , bolts , nuts and pins etc . Diameter from M0.8 to M30 . Monthly capacity ups to 300 tons .



Availabe material :

1. Carbon steel

2. Brass

3. Aluminum

4. Stainless steel

 5. Plastic

 6. Various alloy steel eg. titanium alloy .

Cross Recess Flat Head High Low Threads Confast Concrete Screws Square Cone Point 10



Warm Tips





If you are interesting in dacromet confast screws , please contact us via email or phone , we will get back to you within 12 hours , Thank you !
