Product Details:
Payment & Shipping Terms:
|
| Material: | Brass, Carbon Steel | Standard: | Custom |
|---|---|---|---|
| Finish: | Nickel | Grade: | 4.8 |
| Head Type: | Cylinder | Length: | 15 |
| Thread Diameter: | M3 | Drive: | Slot |
| Pitch: | 0.5 | Thread Length: | 5 |
| High Light: | M3 Captive Panel Screws,Knurled Head Captive Panel Screws,Captive Panel Fastener Screws |
||

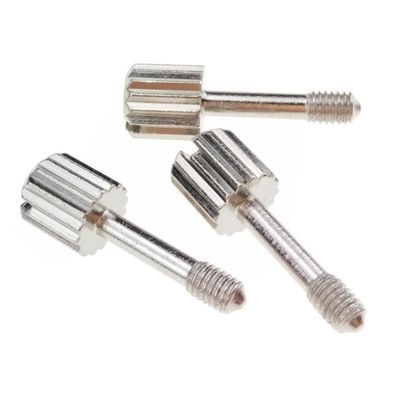

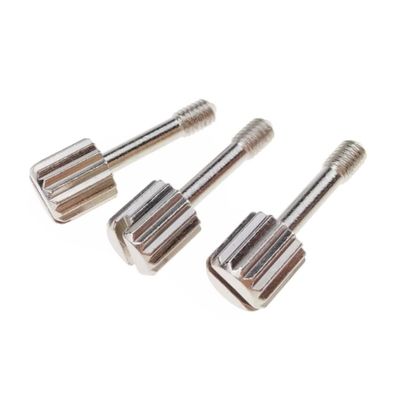

M3 Captive Panel Screws Nickel Knurled Head Steel Fastener
Carbon steel captive panel screws are similar with captive screws , a shaft section and a threaded section , both sections with different diameters , when object was assembled by captive panel screws , and can not be backed out or slipped out as hole diameter of object is smaller than threaded diameter of captive screws ,
This captived panel scews with knurled head design that can be operated by hand and a slotted socket in head for screwdriver .
|
Items |
Description |
Remark |
Picture |
|
|
Material |
Stainless |
A2 |
|
|
|
Finish / Plating |
Polish |
|
||
|
Hardness |
200 |
HV |
||
|
Color |
Natural |
|
||
|
Standard |
Customzied |
|
||
|
Dimensions |
Thread dia. |
M3 |
Head dia. |
5.8 |
|
Full length |
15 |
Head height |
5.0 |
|
|
Pitch |
0.5 |
Head socket |
Slot |
|
1 . Easy installation
Captive panel screws can be operated by hand or screwdriver with slot end .
2 . Quick locking performance
Captived thread shaft for easy locked panel as quickly as possible .
3. Do not need nuts for fastening .
4 . Good corrosion resistance
5 . Bright surface with high finess
6 . Free burrs or sractch
Tips for application
1 . Female threaded hole should be suitable for thread of captive panel screws .
2 . Thickness of panel should be within shaft length of captive panel screws .
3 . Drive captive bolt by hand or a slotted screwdriver .
Stainless steel captive panel screws are used for locking sheet panel or other similar objects .
|
Normal packing
1. In bulk : Polybag ( 1-5 kgs) and cartons (8-20 kgs ) , 0.01 CBM / CTN
2. Boxes : Box ( 1-3 kgs) and cartons ( 5-15 kgs ) , 0.01 CBM / CTN
3. All cartons to a pallet ( 1X1.2 m )
4. Customized packing |
 |
Note : Objects showed in picture are only for reference , not stand for described items .
