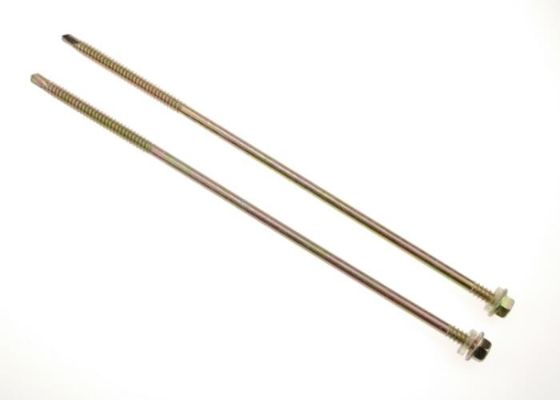

Hex Washer Head Sandwich Panel Screws Galvanized Steel Tapping Thread ST 5.5
Custom sandwich panel screws are similar with self drilling screws but with longer shaft , it is designed for thick sandwich panel installation .
Sandwich panel screws are made of alloy steel with harden treatment , hex washer head and a plastic ring under head , there are two shaft sections with self tapping threads that set on under head and another section is placed close ends that can secure panels steadily , rest section is shaft . Sandwich panel screws are made by a teck drilling point that is same with roofing screws or teck screws . this design helps sandwich panel screws to cut panels as quickly as possible .
Dimesions for head and point and threads of sandwich panel screws are same as the self drilling screws
D | ST 2.9 | ST 3.5 | ST 3.9 | ST 4.2 | ST 4.8 | ST 5.5 | ST 6.3 |
P | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
C | 0.4 | 0.6 | 0.6 | 0.8 | 0.9 | 1 | 1 |
Dc | 6.3 | 8.3 | 8.3 | 8.8 | 10.5 | 11 | 13.5 |
5.8 | 7.6 | 7.6 | 8.1 | 9.8 | 10 | 12.2 | |
K | 2.8 | 3.4 | 3.4 | 4.1 | 4.3 | 5.4 | 5.9 |
2.5 | 3 | 3 | 3.6 | 3.8 | 4.8 | 5.3 | |
S | 4 | 5.5 | 5.5 | 7 | 8 | 8 | 10 |
3.82 | 5.32 | 5.32 | 6.78 | 7.78 | 7.78 | 9.78 | |
Dp | 2.3 | 2.8 | 3.1 | 3.6 | 4.1 | 4.8 | 5.8 |
![]() |
Thread diameter | 6.3 | |
head diameter | 13.0 | ||
Head height | 5.8 | ||
Length | 200 | ||
Pitch | 1.8 | ||
Material | Alloy steel | Hardness | 450 HV |
Finish | Zinc | Torque | 5.5 |
Hardness for different sandwich panel screws with different specifications based on standard requests .
d/ diam | #6 | #7 | #8 | #10 | #12 | #14 (1/4) |
tpi | 20 | 18 | 18 | 16 | 14 | 14 |
Thr type | st | st | st | st | st | st |
Min. case Hardness | 600 | 600 | 600 | 600 | 600 | 600 |
Core Hardness Hv 0.3 | 300~400 | 300~400 | 300~400 | 300~400 | 300~400 | 300~400 |
Min. Torsional Lb-in | 24 | 24 | 42 | 61 | 92 | 150 |
Drill point Point # | Nr 2 | Nr. 2 | Nr. 2 | Nr. 3 | Nr. 3 | Nr. 3 |
Test Plate Thick ness | 0.062~0.068 | 0.062~0.068 | 0.062~0.068 | 0.062~0.068 | 0.062~0.068 | 0.062~0.068 |
Optional materials
Carbon steel sandwich panel screws can be made of or from Stainless steel based on serial 300 , 400 and 200 .
Pull out torque for sandwich panel screws
Gauge | Kg/cm |
#4 | 14 |
#6 | 28 |
#7 | 35 |
#8 | 48 |
#10 | 71 |
#12 | 94 |
#14 | 110 |
Installation by screwgun if needed for sandwich panel screws
1 . A screwgun with a depth sensitive nose piece that be used to install drillers ,the screwgun should be a min of 4 amps and a RPM range from 0 to 2500c.
2 . Adjust the screwgun nose piece to properly set the fastener .
3 . Damaged bit tips should be replaced
4 . The fastener is fully setted when the head is flush with the work surface .
5 . The fastener have to penetrate beyond the metal structure a min of 3 picthes of threads
