25mm x 150mm Plastic Injection Moulding Parts Holder Panel for Antenna Device

25mm x 150mm Plastic Injection Moulding Parts Holder Panel for Antenna Device
25mm x 150mm Plastic Injection Moulding Parts Holder Panel for Antenna Device 25mm x 150mm Plastic Injection Moulding Parts Holder Panel for Antenna Device 25mm x 150mm Plastic Injection Moulding Parts Holder Panel for Antenna Device 25mm x 150mm Plastic Injection Moulding Parts Holder Panel for Antenna Device

Large Image :  25mm x 150mm Plastic Injection Moulding Parts Holder Panel for Antenna Device

Product Details:
Place of Origin: China
Brand Name: VDL
Certification: ISO 9001
Model Number: PIM1009
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 5000 pcs each carton with dimension 20 X 22 X 25 cm , 500 cartons to a 20 ft container
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union , Paypal
Supply Ability: 300 , 000 pcs per month
Detailed Product Description
Material: Nylon Property Class: PA 66
Fire Resistance: UL 94V-2 Length: 150
Width: 25 Height: 10
Precision: MT 7 Environmental Standard: RoHS
High Light:

plastic injection molded products

,

plastic injection moulding parts



25mm x 150mm Plastic Injection Moulding Parts Holder Panel for Antenna Device

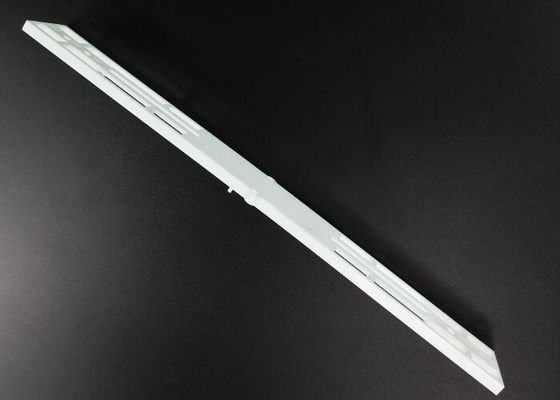

Rectangle plastic injection molding holder panel with customized design for antenna device applied , injection molding holder panel has different shape through holes that are riveted into another part with suitable sockets for getting a good fixing purpose , and several holes placed both ends and middle sections for further fixing by screws .

As application requests are critical for injection molding holder panel , it is made from polyamide ( PA ) with property class 66 , this material with perfect comprehensive properties .

Wear resistance

Good self-lubricant

High mechanical property

Resistant high temperature
Normally , the part can be operated smoothly at temperature 150℃ and thermal deformed temperature is up to 250℃ when parts with glass fiber .

Perfect elongation
Elongation at break is 2.2% according to ISO 527 testing method .

Corrosion resistance

Good insulation
Specific volume resistance is 1.83×1015 and resistance to high breakdown voltage support part to be good insulated .

Resistant impact
60 – 80 KJ/M2 normally .

Resistant fire
Generally , the fire resistance is UL94V-2 and UL64V-0 for special parts .

Resistance to low temperature
Parts can be workable at -30℃

Environment friendly
Parts meet RoHS or REACH environmental production standard .


Specification for plastic injection molding holder panel

Length : 150 mm
Width : 20 mm
Thickness : 3 mm

More dimensions for holder panel please contact us , customized sizes


Precision for plastic injection molding holder panel

We refer to ISO 2768-m with level MT7


Basic Sizes Level
MT7
A B
0-3 0.38 0.58
3-6 0.46 0.66
6-10 0.56 0.76
10-14 0.66 0.86
14-18 0.76 0.96
18-24 0.86 1.06
24-30 0.98 1.18
30-40 1.12 1.32
40-50 1.32 1.52
50-65 1.54 1.74
65-80 1.8 2
80-100 2.1 2.3
100-120 2.4 2.6
120-140 2.7 2.9
140-160 3 3.2

Unit : mm


Thermal Performance for plastic injection molding holder panel


Specific volume resistance Ω·cm 1.83×1015
Matin heatproof ℃ 50~60



Mechanical Property for plastic injection molding holder panel


Tensile strength MPa 60~80
Elongation at break % 2.2
Bending strength MPa 100~120
Modulus of elasticity for bending MPa 2000 ~3000
Notched Impact Strength(J/m) 60~100
HR hardness 118



Physical Performance for plastic injection molding holder panel


Density ( g/cm3) 1.14
Water absorption % 3
Shrinkage % 1~2
Normal working temperature ℃ 80~120
Brittle temperature ℃ -30℃
Melting temperature ℃ 252
Pyrogenic decomposition temperature ℃ 350℃



Tips for plastic injection molding holder panel

As PA material with water absorption , please don’t put injection molding holder panel parts under water for a long time to avoid changes on dimensions for parts .

Don’t keep plastic injection molding holder panel parts outside to prevent from fading .
