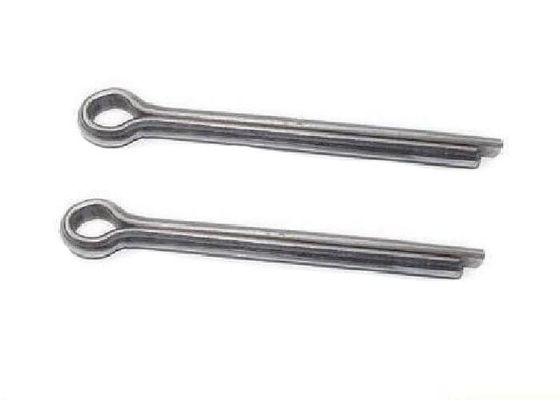

Extended Prong Stainless Cotter Split Pin DIN 94 Square Cutting Point 5 X 30

Extended Prong Stainless Cotter Split Pin DIN 94 Square Cutting Point 5 X 30
Extended Prong Stainless Cotter Split Pin DIN 94 Square Cutting Point 5 X 30 Extended Prong Stainless Cotter Split Pin DIN 94 Square Cutting Point 5 X 30 Extended Prong Stainless Cotter Split Pin DIN 94 Square Cutting Point 5 X 30 Extended Prong Stainless Cotter Split Pin DIN 94 Square Cutting Point 5 X 30

Large Image :  Extended Prong Stainless Cotter Split Pin DIN 94 Square Cutting Point 5 X 30

Product Details:

Place of Origin: China
Brand Name: VDL
Certification: ISO 9001
Model Number: CP0530

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1000 pcs each carton with dimension 20 X 15 X 15 cm , 500 cartons to a 20 ft container
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union , Paypal
Supply Ability: 1000 , 000 pcs per month
Detailed Product Description
Material: Carbon Steel Property Class: 4.8
Hardness: HV 450 Finish: Zinc
Standard: DIN 94 Diameter: 5
Length: 30 Precision: M
High Light:

fastening pin

,

hardware pins



Extended Prong Stainless Cotter Split Pin DIN 94 Square Cutting Point 5 X 30





Diameter : 5



Length : 30



Material : Steel



Finish : Nickel



Hardness : HRC 30



Standard : DIN 94



Split pins are also acknowledged as cotter pins or cotter key with a half-circular cross section , split pin has a round hole on the head that formed when two tines are bent , one tine is shorter than another one for the convenient locking on the end .



Dimensions



Standard sizes for split pins from 0.6 to 20 mm for DIN 94 ; besides , we are able to provide BSW standard sizes and customized sizes .



Extended Prong Stainless Cotter Split Pin DIN 94 Square Cutting Point 5 X 30 0



d b l c a
min max max max
0.6 2 4 12 1 1.6
0.8 2.4 5 16 1.4 1.6
1 3 6 20 1.8 1.6
1.2 3 8 26 2 2.5
1.6 3.2 8 32 .2.8 2.5
2 4 10 40 3.6 2.5
2.5 5 12 50 4.6 2.5
3.2 6.4 14 65 5.8 3.2
4 8 18 80 7.4 4
5 10 22 100 9.2 4
6.3 12.6 30 120 11.8 4
8 16 40 160 15 4
10 20 45 200 19 6.3
13 26 71 250 24.8 6.3
16 32 112 280 30.8 6.3
20 40 160 280 38.5 6.3





More Materials for Split Pins



Stainless steel

Including SUS 201 , SUS303 , SUS 304 ,SUS 316 , SUS 416 ,SUS 430 and SUS 420 .



Carbon steel

Material contains 1008 , 1010 , 1018 , 1022 , 1035 , 1045 , SCM 435 and 40CRO



Besides , brass ,mild steel and aluminum materials are available .





Finish



Finish Description
Zinc Various color can be choosed and perfect on anti-corrosion
Nickel Make the surface of the screws more bright and hardened and the performance of screws will be improved
Polish Improving the brightness of surface but is inferior is not as zinc in anti-corrosion
Tin Very perfect to be anti-rust , and widely used to components
Brass It is usually used with Nickel for more good anti-corrrosion.
Paint Its powder paint with colors to prevent surface from rust.
Oxide Oxide is often black color





Applications



Split pins are used to secure objects like a screw or a nut etc .and sometimes are used combination with a clevis pin .



● Household products



● Airplane



● Vehicle



● Communications



● Mechanical machines



● Sports equipments



● Industrial Robots





Features for split pin



▲ Harden material



▲ Enough flexibility



▲ Not easy to be deformed



▲ Simple design



▲ Eco-friendly





Competitive Advantages



※ Top quality with cheap price



※ Strict dimensions control and high precision



※ All Screws are eco-friendly



※ Quick delivery



※ Perfect sales-after service
